TS-TR1020WO7
In the realm of modern lighting solutions, Flat LED Recessed Spotlights / Downlights have emerged as a cornerstone for both residential and commercial applications. Our 6W and 10W models offer unparalleled energy efficiency, sleek aesthetics, and robust performance, making them ideal choices for a wide range of lighting needs. This comprehensive guide delves into the intricate details of these state-of-the-fixtures, highlighting their features, benefits, and the reasons why they should be at the top of your consideration list.
 |
 |
| Code | TS-DO25WMR | TS-DO35WMR |
|---|---|---|
| Rated Power | 25W | 35W |
| Cut-Out | D 95MM | D 115-125MM |
| Input Current | 113mA@220V | 159mA@220V |
| Lumens | 2500lm +/-5% | 3500lm +/-5% |
| Beam Angle | 110° | 110° |
| Size | D110xH90MM | D138xH105MM |
 |
 |
| Code | TS-DO25WML | TS-DO35WML |
|---|---|---|
| Rated Power | 25W | 35W |
| Cut-Out | D 95MM | D 115-125MM |
| Input Current | 113mA@220V | 159mA@220V |
| Lumens | 2500lm +/-5% | 3500lm +/-5% |
| Beam Angle | 110° | 110° |
| Size | D110xH90MM | D138xH105MM |
| Products Name |

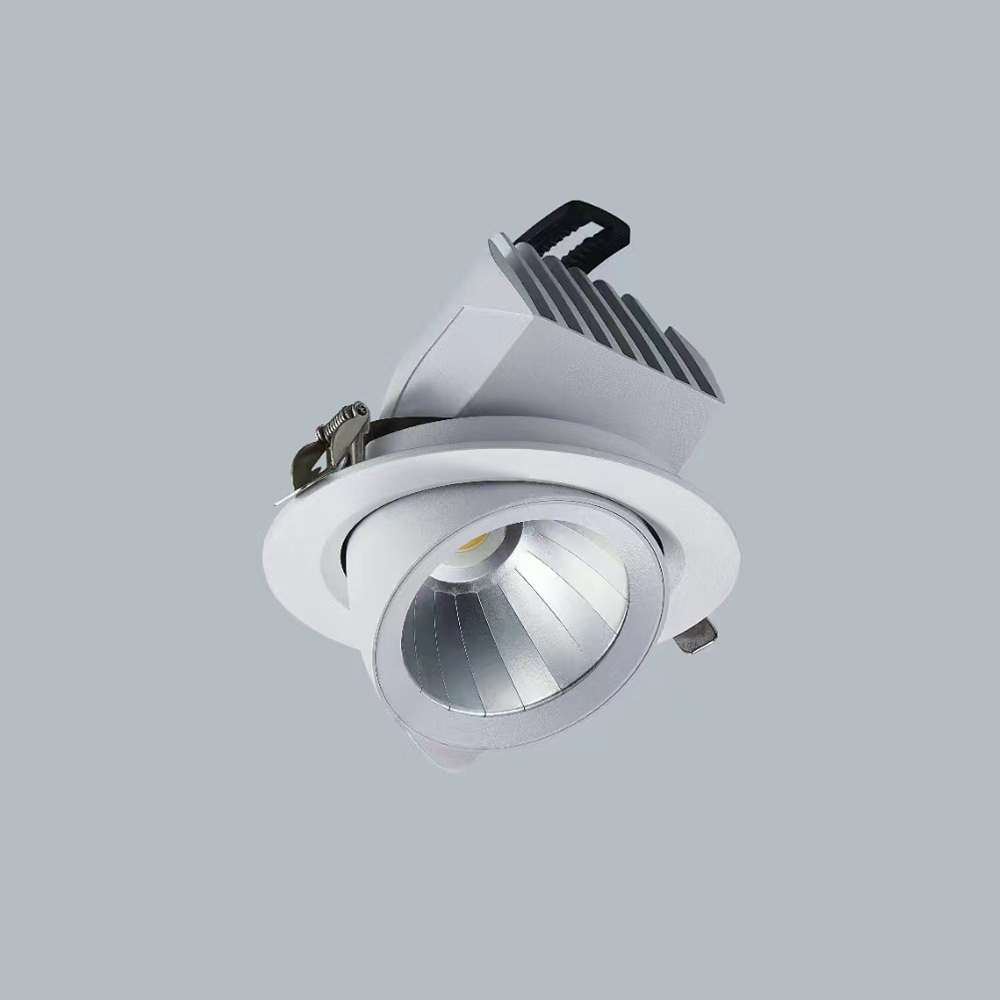

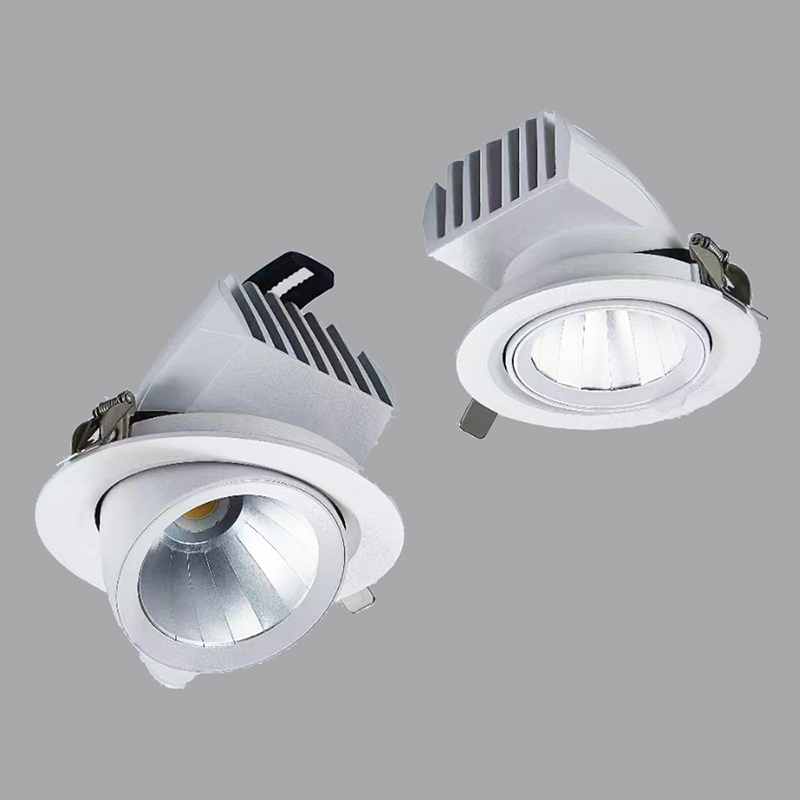

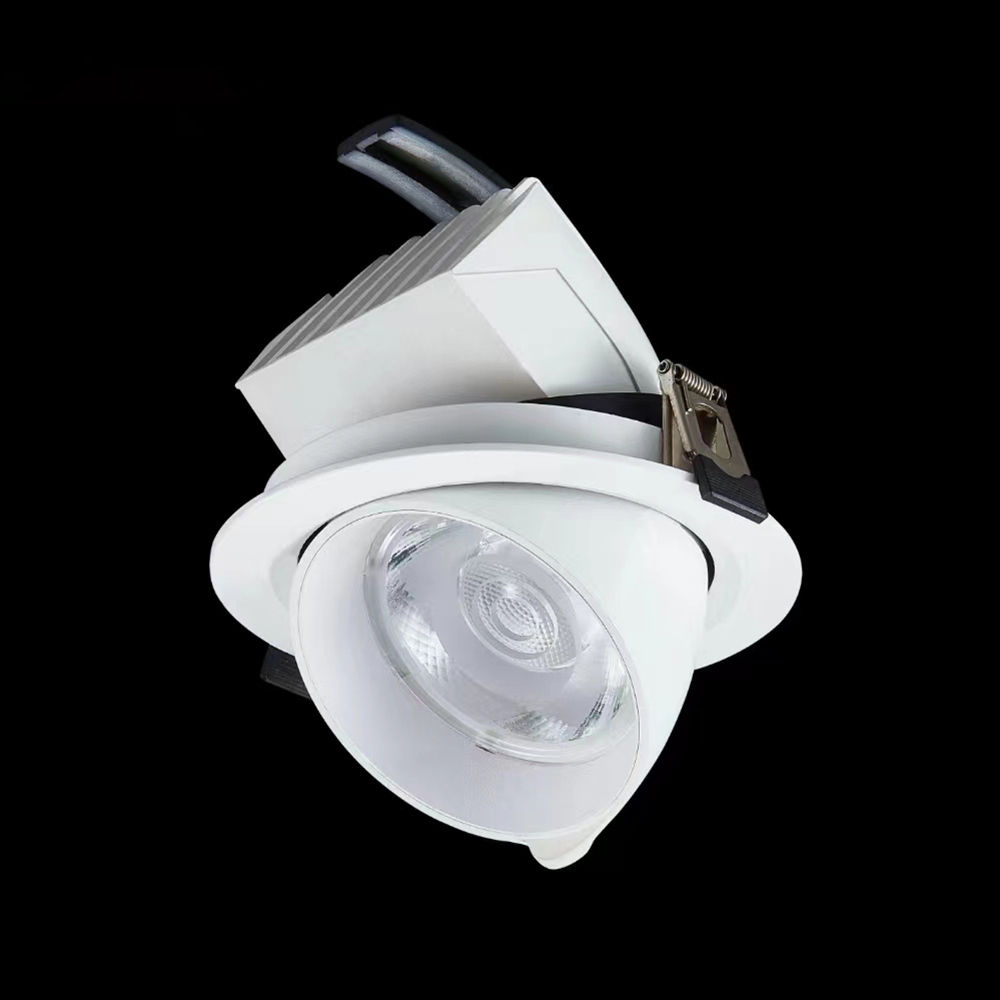

Recessed LED lighting gimbal downlights |
|---|---|
| Body Color | Sandy Black Radiator + Sandy Black / Sandy White Surface ring |
| Reflector Color | Black/ White |
| Materials | Aluminum Body + PC Cover |
| IP Rate | IP44 |
| Add Honeycomb | Available |
| Anti-glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.5 / >0.9 |
| Driver Brand | Philips, Osram, Lifud, Eaglerise, Kegu, Philips |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 120lm/W |
| COB Brand | Bridgelux, CREE, Philips |
| Color Render Index | Ra>80 / Ra>90(Default) / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
