TS-DO2535WM
- DE
 |
 |
| Code | TS-MTS2601 | TS-MTS2602 | TS-MTS2603 |
|---|---|---|---|
| Length | 1M | 2M | 3M |
| Color Of body | White/Black | White/Black | White/Black |
| Color of Cover | White/Black/Golden | White/Black/Golden | White/Black/Golden |
| Materials | Aluminum + copper | Aluminum + copper | Aluminum + copper |
| Size | 26*8.5*1000MM | 26*8.5*2000MM | 26*8.5*3000MM |
 |
 |
| Code | TS-MTS26PS100W | TS-MTS26PS200W |
| Power | 100W | 200W |
| Working Voltage | 220-240VAC | 220-240VAC |
| Output Voltage | 48VDC | 48VDC |
 |
 |
 |

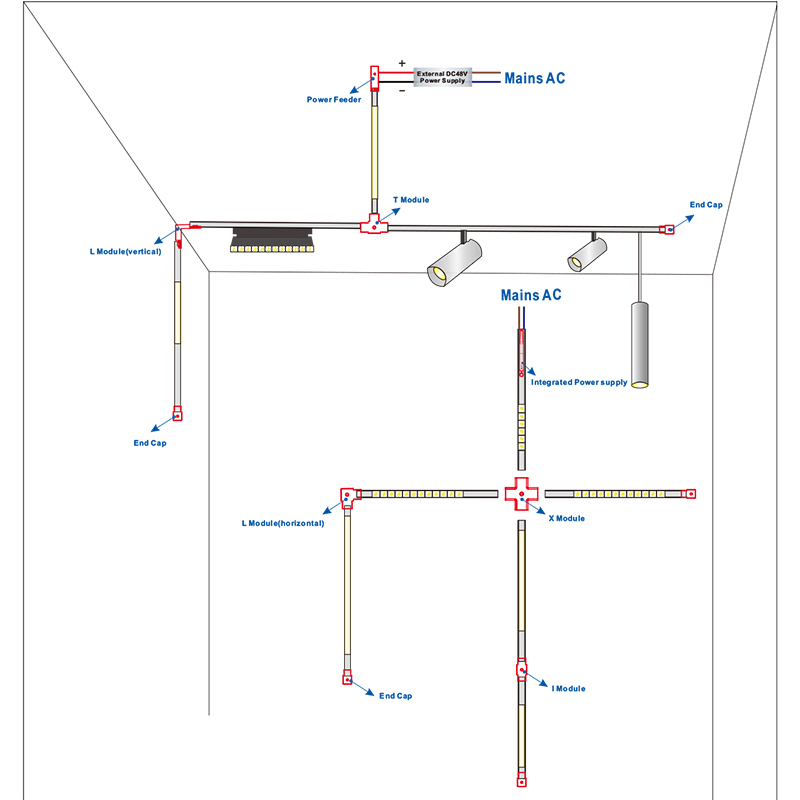

| Power Feeder for external power supply | I Model Connector | L Model Connector |
| TS-MTS26PF | TS-MTS26IM | TS-MTS26LM |
 |
 |
 |

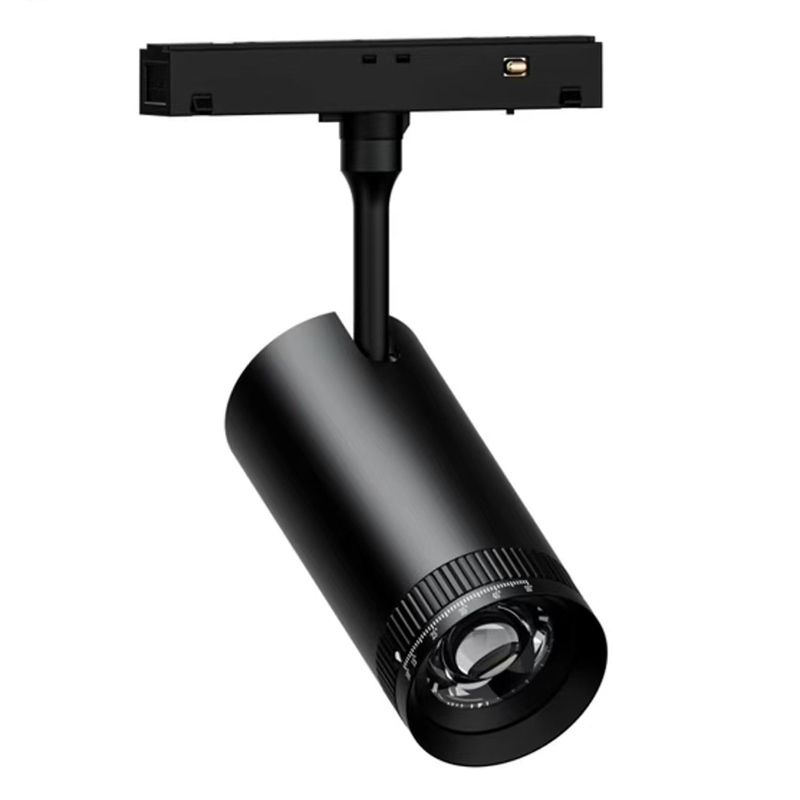

| Code | TS-TR10WMMT | TS-TR20WMMT | TS-TR30WMMT |
|---|---|---|---|
| Rated Power | 10W | 20W | 30W |
| Input Current | 45mA@220V | 91mA@220V | 136mA@220V |
| Track Adaptor | 20/35 Type | 20/35 Type | 20/35 Type |
| Lumens | 1000lm +/-5% | 2000lm +/-5% | 3000lm +/-5% |
| Beam Angle | 15°, 24°, 36° | 15°, 24°, 36° | 15°, 24°, 36° |
| Size | D40x117MM | D60x150MM | D70x165MM |
 |
 |
 |
| Code | TS-TR10WMSM | TS-TR20WMSM | TS-TR30WMSM |
|---|---|---|---|
| Rated Power | 10W | 20W | 30W |
| Input Current | 45mA@220V | 91mA@220V | 136mA@220V |
| Lumens | 1000lm +/-5% | 2000lm +/-5% | 3000lm +/-5% |
| Beam Angle | 15°, 24°, 36° | 15°, 24°, 36° | 15°, 24°, 36° |
| Size | D40x117MM | D60x150MM | D70x165MM |
 |
 |
|
| Code | TS-TR10WMRM | TS-TR20WMRM | TS-TR30WMRM |
|---|---|---|---|
| Rated Power | 10W | 20W | 30W |
| Cut-Out | D 75mm | D 75mm | D 75mm |
| Input Current | 45mA@220V | 91mA@220V | 136mA@220V |
| Lumens | 1000lm +/-5% | 2000lm +/-5% | 3000lm +/-5% |
| Beam Angle | 15°, 24°, 36° | 15°, 24°, 36° | 15°, 24°, 36° |
| Size | D40x117MM | D60x150MM | D70x165MM |
| Products Name | LED tracking light fixture 10W 20W 30W |
|---|---|
| Track System | 3-CIRCUITS/ 1-CIRCUIT |
| Adaptor Base | 2 Phase (2 wires / 3 wires ), 3 phase ( 4 wires ) |
| Body Color | Sandy White / Sandy Black |
| Materials | Aluminium Body + PMMA lens |
| Beam Angle | 15°, 24°, 36° |
| IP Rate | IP20 |
| Add Honeycomb | Available |
| Anti Glare | Yes |
| Flicker Free | Yes |
| Installation | Track Mounted / Surface Mounted / Magnetic Track Mounted / Recessed Mounted |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Lifud, Eaglerise,and Philips, Osram, Allooking Others |
| Dimmable | Non-DIM / TRIAC / 0-10V |
| Total Harmonic Distortion(THD) | ≤15% |
| Colour Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W |
| COB Brand | Bridgelux, CREE, Philips |
| Color Render Index | Ra>80 / Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | - 20~ 50℃ |
| Storage Temp. | - 30~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3-5 Years |
