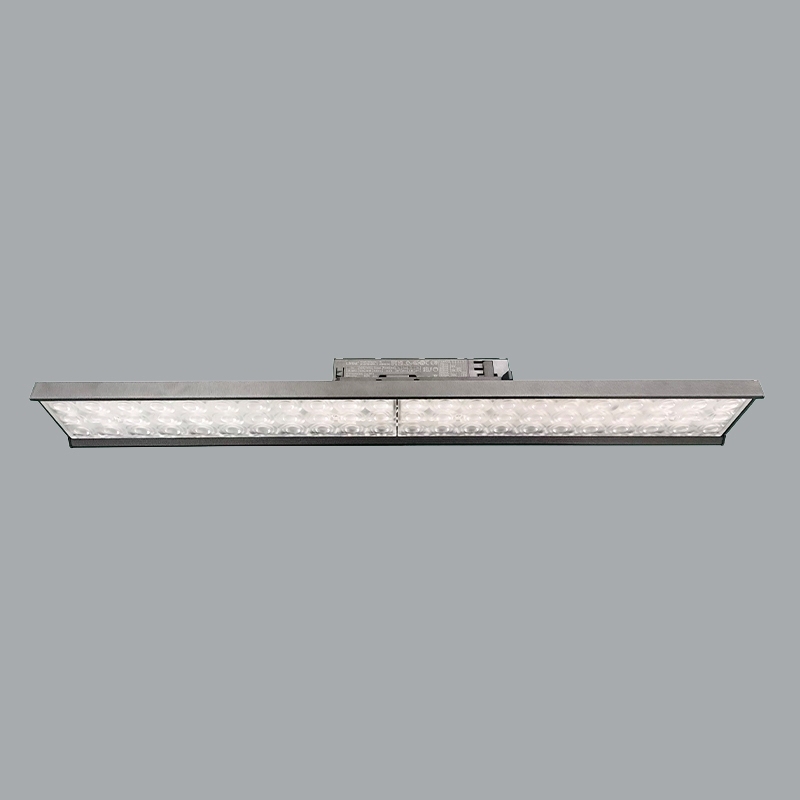

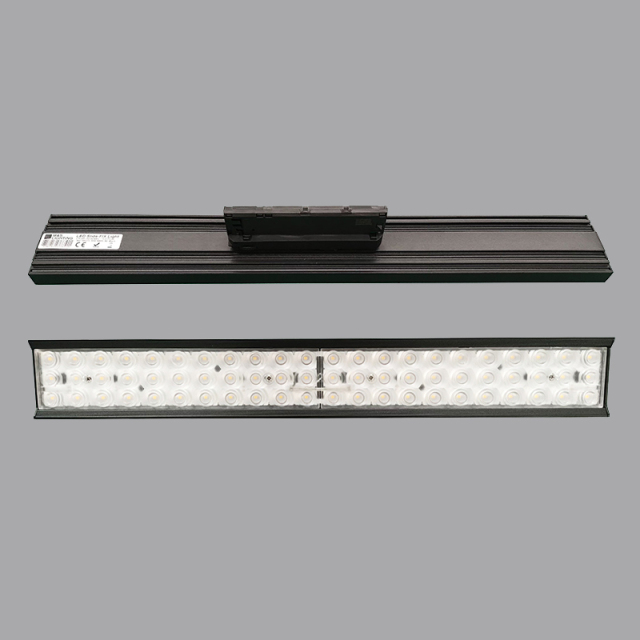

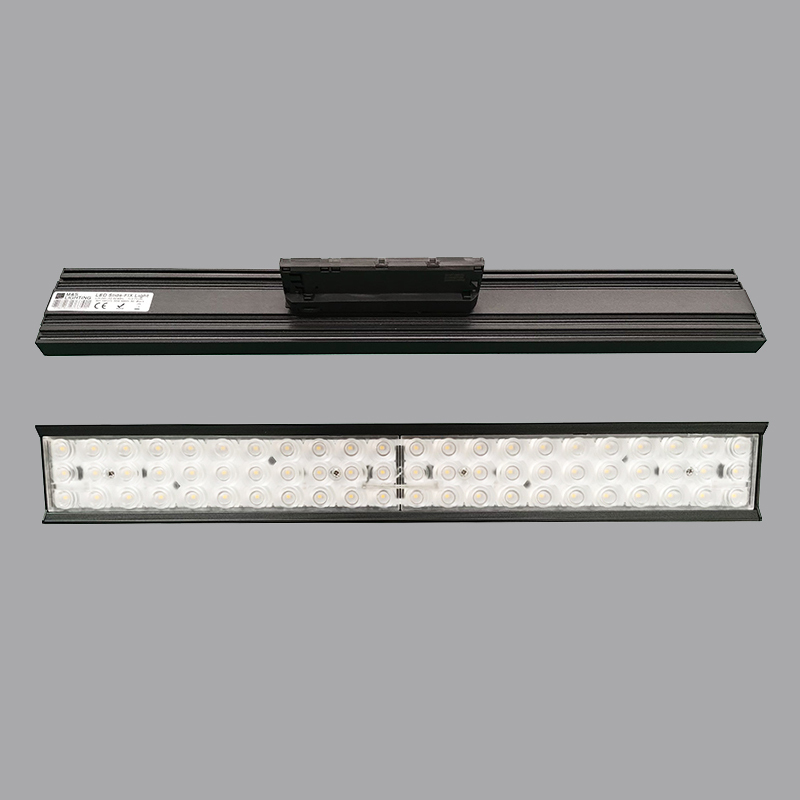

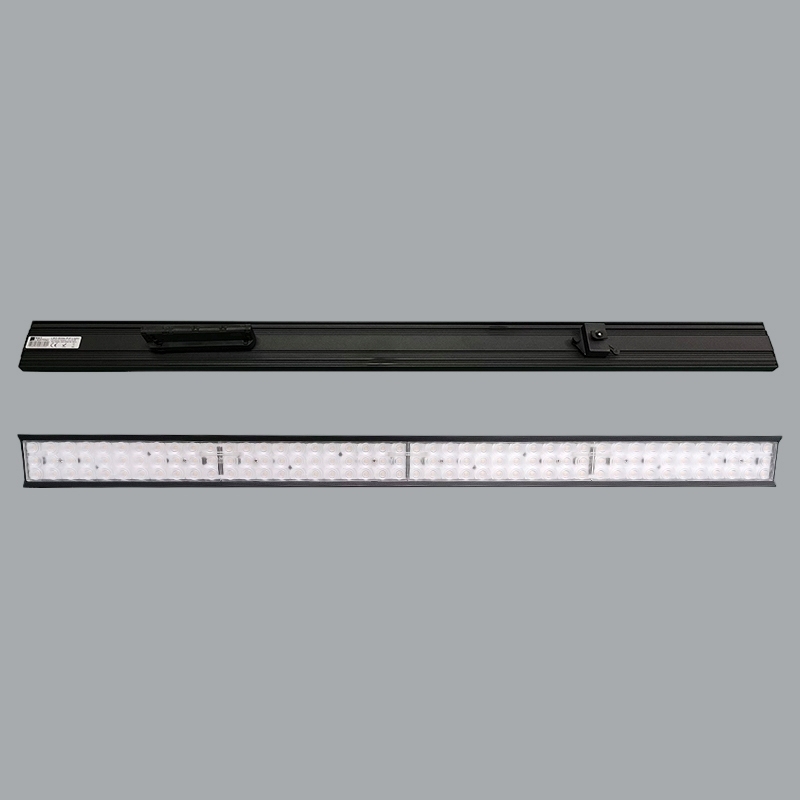

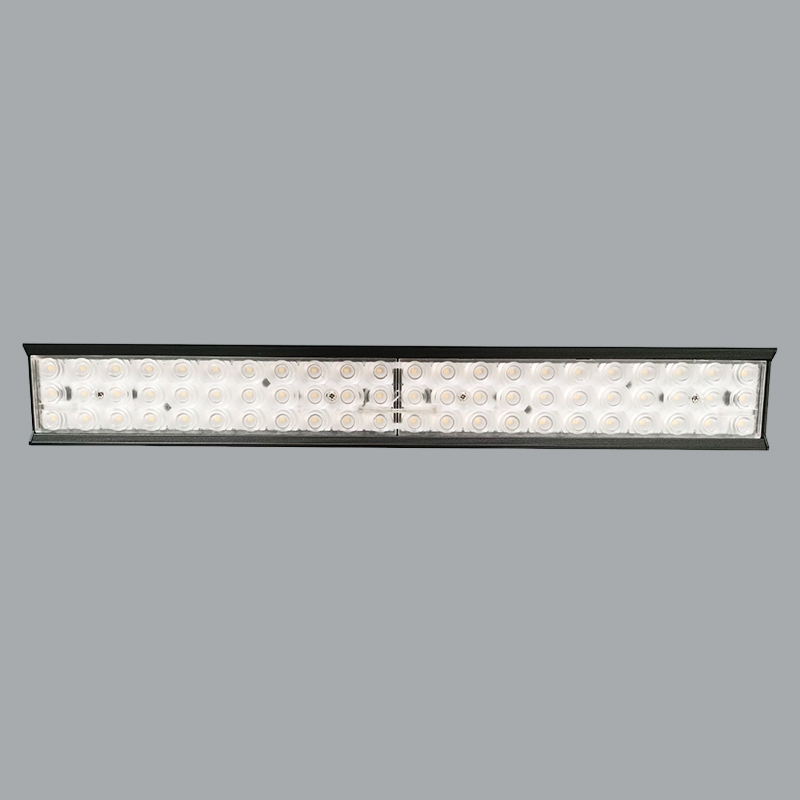

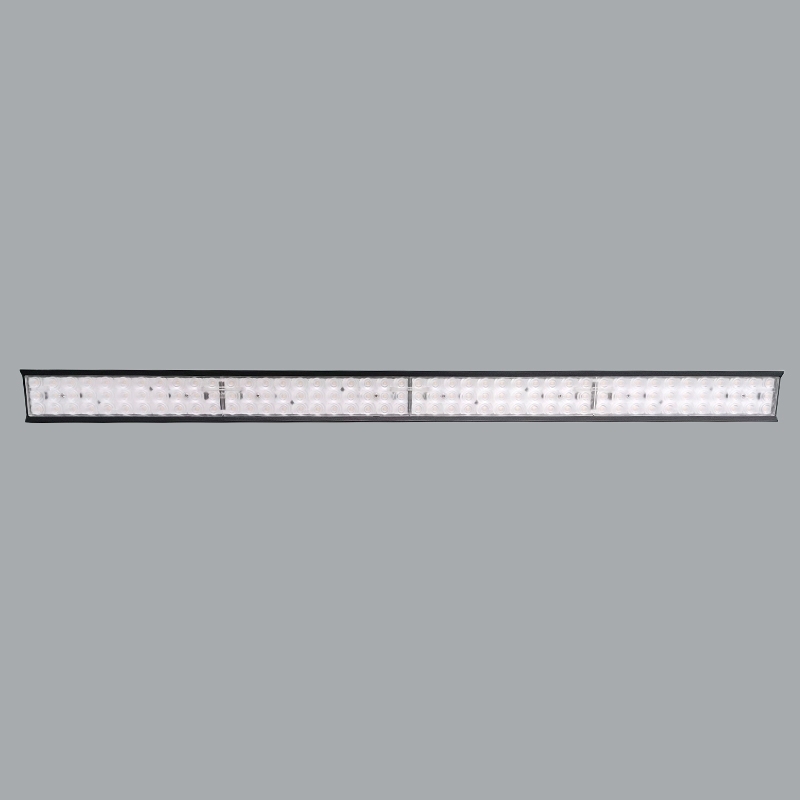

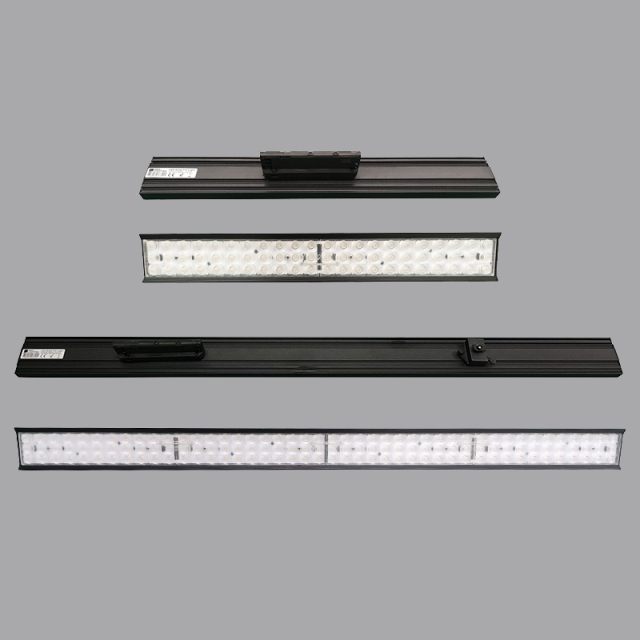

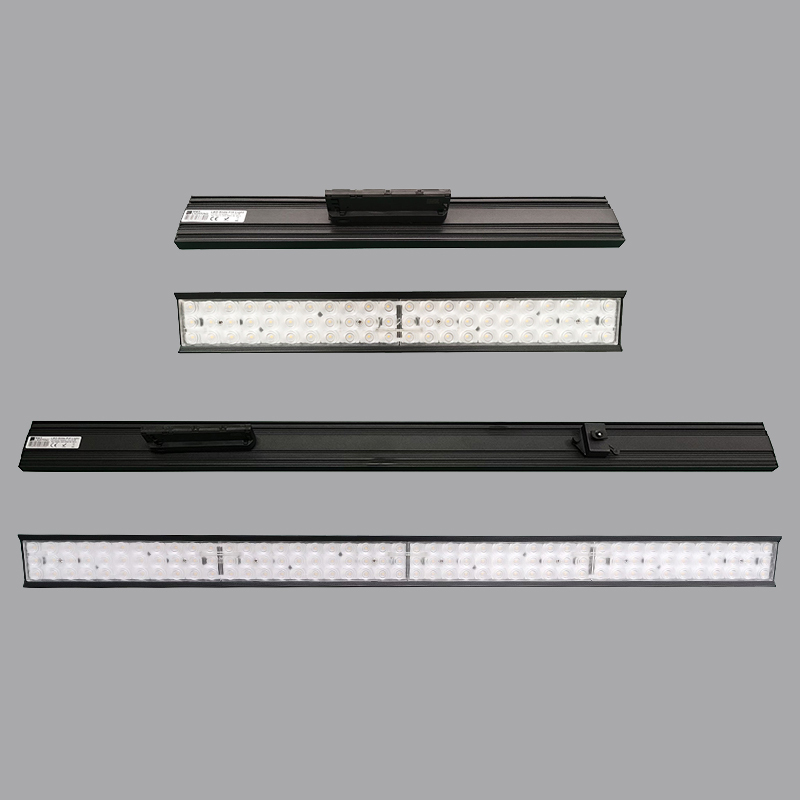

Linear LED Track Light for Supermarkets (2ft/4ft | 30W-60W)

Professional Lighting Solution for Modern Retail Spaces

Designed specifically for commercial environments, our Linear LED Track Light series redefines supermarket illumination through precision engineering and adaptive functionality. Available in versatile 2ft and 4ft configurations with 30W-60W power options, this system delivers optimal light distribution for merchandise presentation while maintaining energy efficiency.

Key Technical Features

1. Optimized Linear Integration

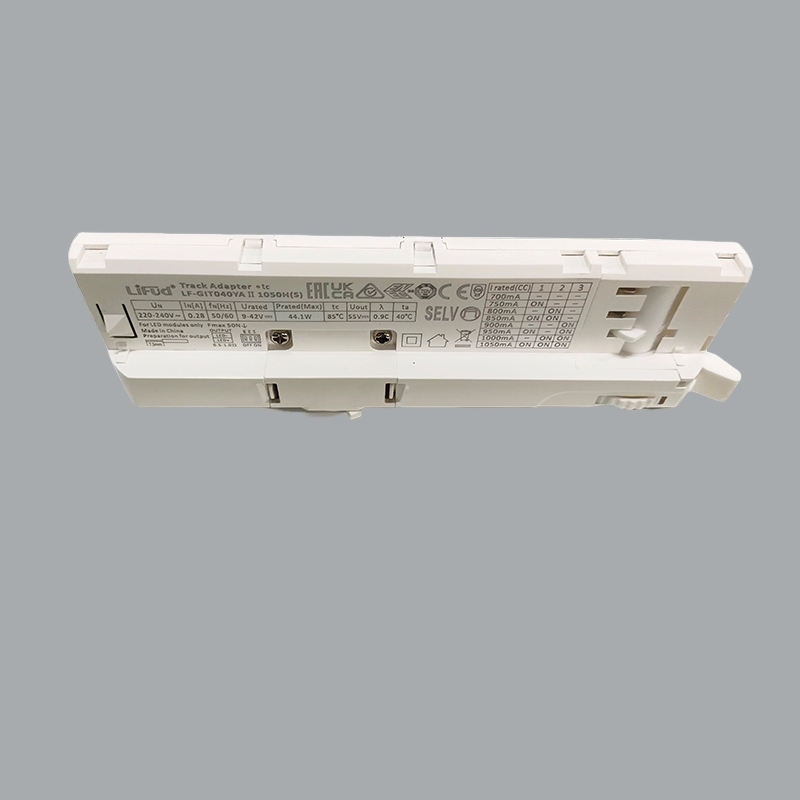

• Track System Synchronization: Engineered with ±2mm dimensional tolerance for seamless alignment standard track systems
• Modular Expandability: Supports continuous linear arrangements through end-to-end connector compatibility
• Aerodynamic Profile: 32mm ultra-slim housing minimizes visual obstruction in ceiling spaces

2. Precision Beam Control

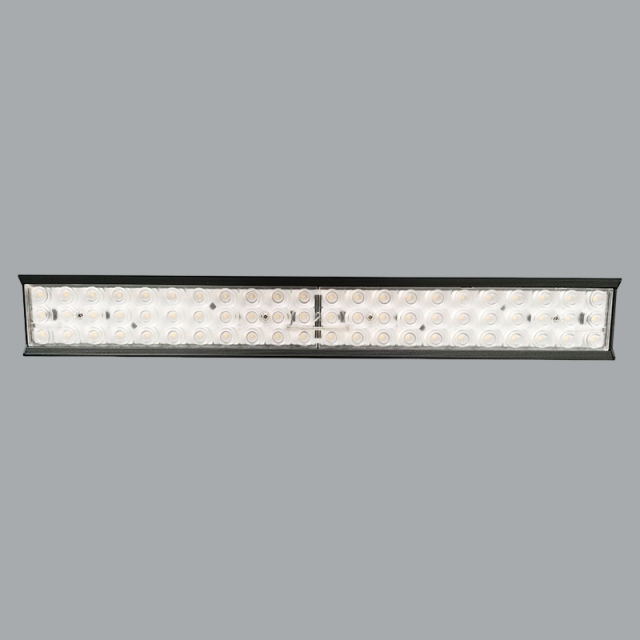

• Adjustable Optics System:
• 15° (Spot) - For focal product highlighting
• 24° (Narrow) - Sectional illumination
• 36° (Medium Flood) - Aisle coverage
• 60° (Wide Flood) - Ambient lighting

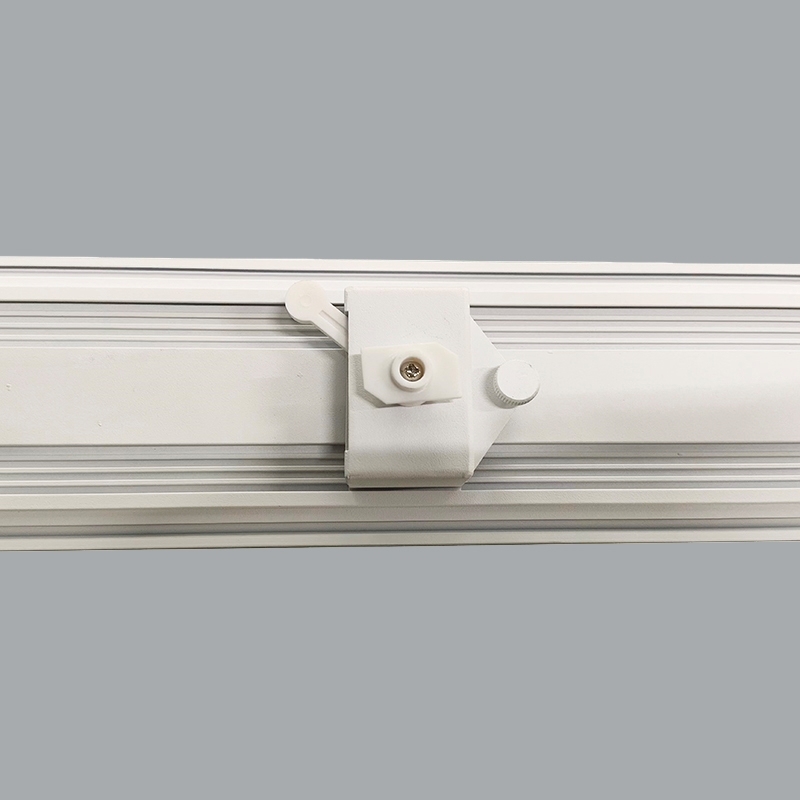

• Tilt Adjustment Range: ±90° vertical rotation with 15° increment locking mechanism

3. Advanced Photometric Performance

| Parameter | 30W | 40W | 50W | 60W | |-------------------|----------|----------|----------|----------| | Luminous Flux | 3,900lm | 5,200lm | 6,500lm | 7,800lm | | Efficacy | 130 lm/W | 130 lm/W | 130 lm/W | 130 lm/W | | CRI (Ra) | ≥90 | ≥90 | ≥90 | ≥90 | | Color Temp Options| 2700K-6500K (±150K tolerance) |

Commercial-Grade Construction

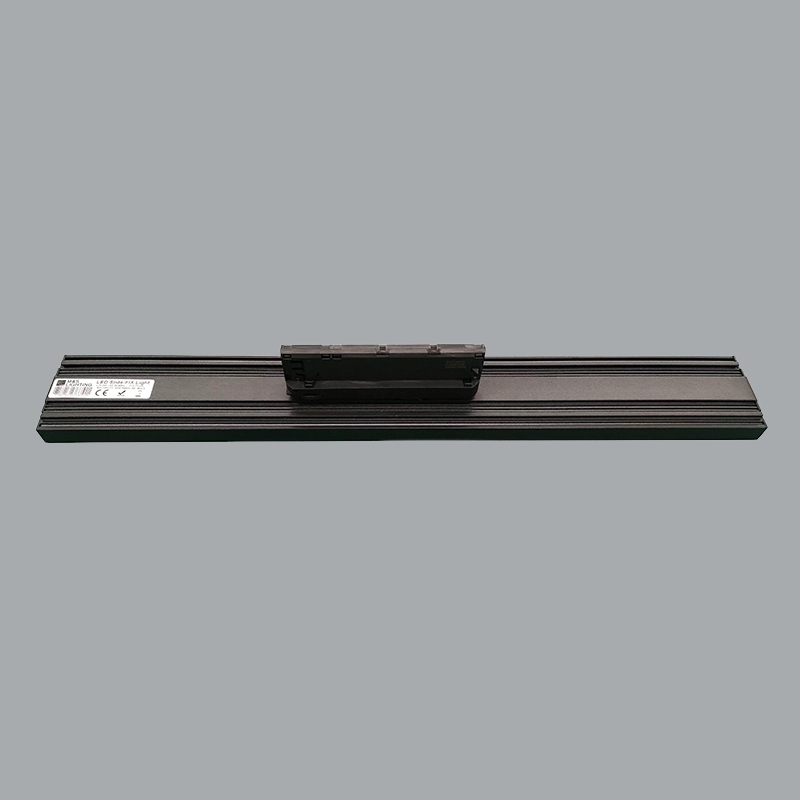

• Thermal Management: Die-cast aluminum housing with 3D fin structure (0.8mm thickness) achieves ≤55°C surface temperature at full load

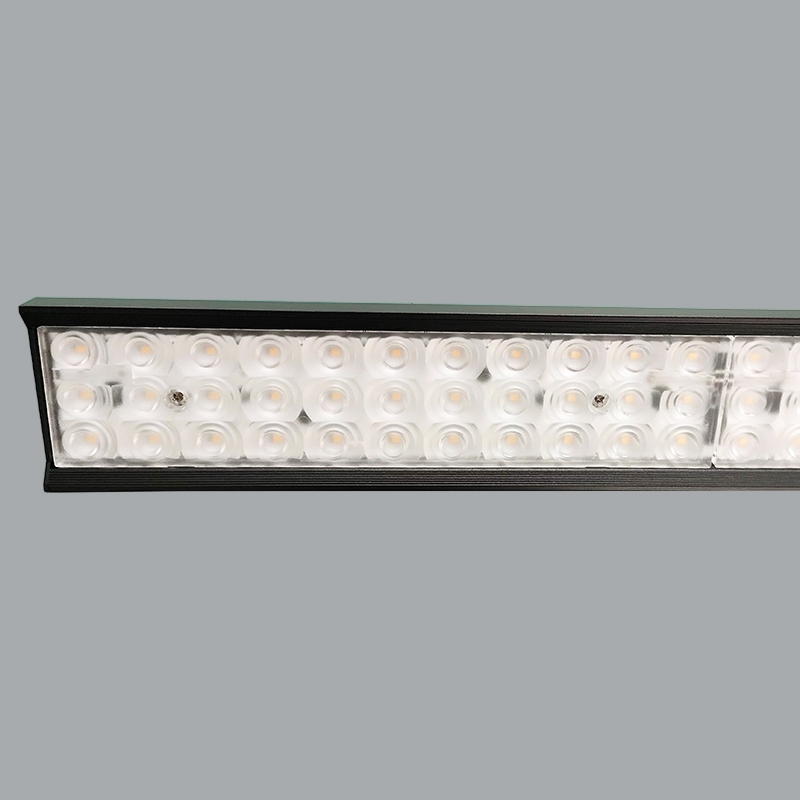

• **Optical anti-glare microprisms (92% transmission rate)
• Electrical Safety: Class I protection with IP20 rating (dry environments)

Implementation Scenarios

1. Perimeter Lighting
   4ft 60W units with 60° beam for wall washing applications

2. Gondola Lighting
   2ft 40W with 24° beam for vertical shelf illumination

3. Feature Displays
   2ft 30W units with 15° spot optics for promotional areas

4. Checkout Zones
   4ft 50W units with 36° beam for task lighting requirements

Maintenance Specifications

• Service Life: L90B10 @ 50,000 hours (TM-21 calculation)
• Driver Warranty: 5-year limited warranty (operating at Ta=25°C)
• Lens Cleaning Cycle: Recommended 6-month interval for optical maintenance

This LED track lighting system achieves 40% energy savings compared to conventional halogen alternatives while maintaining 25% higher vertical illuminance for merchandise visibility. Compatible with 0-10V/PWM/DALI dimming protocols for smart lighting integration.```
