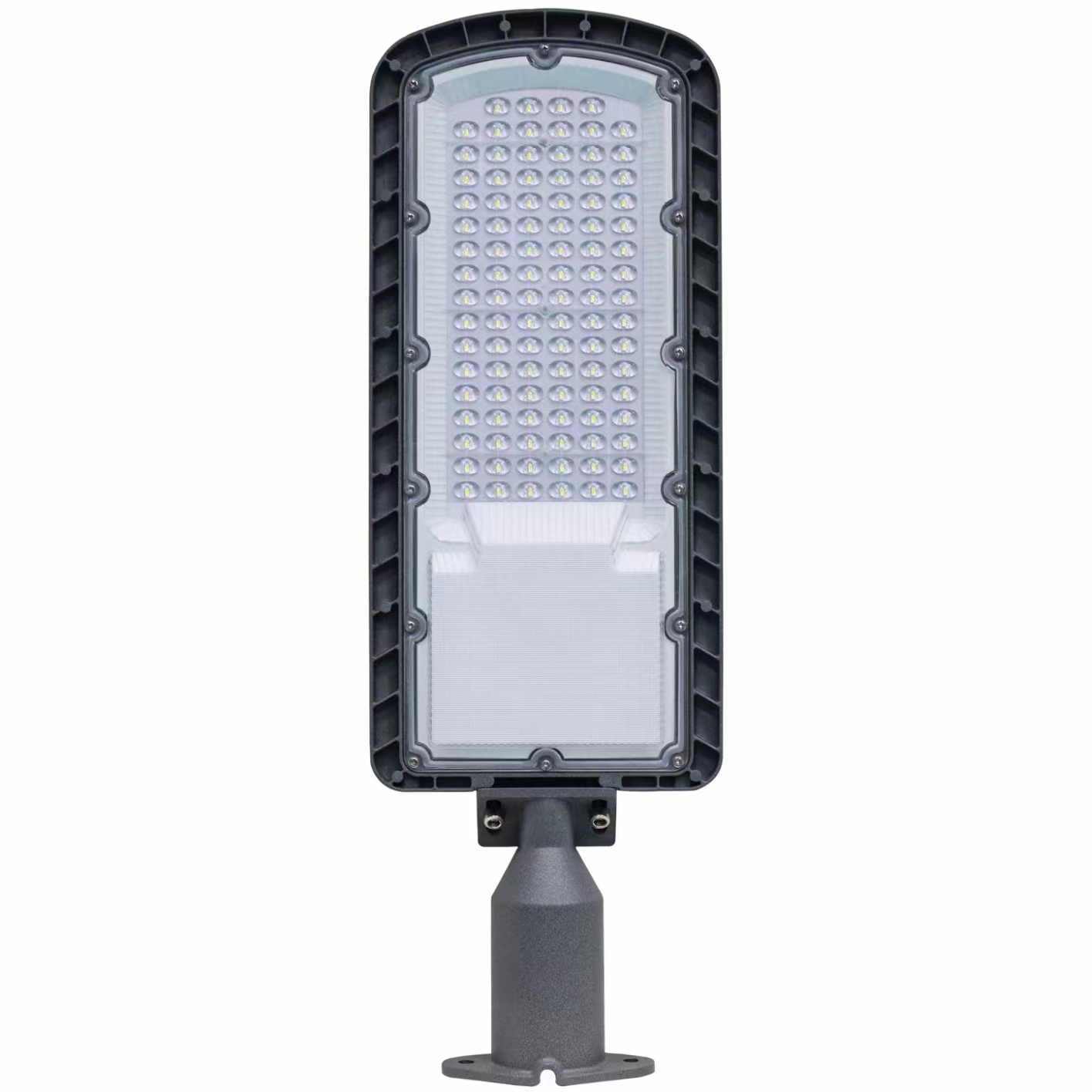

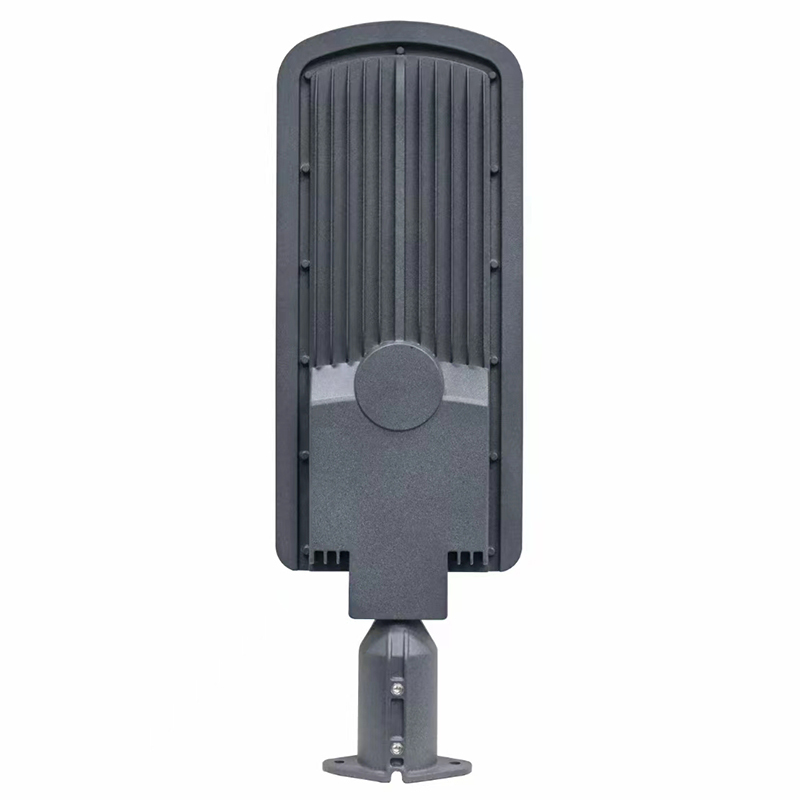

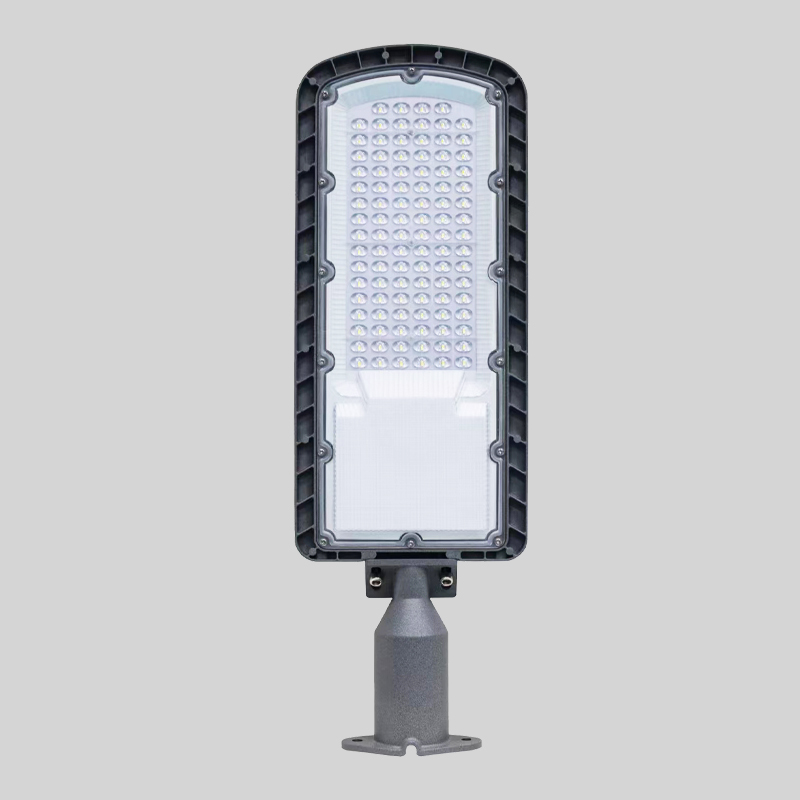

high lumens 0-10V dimmable 100W LED roadway lighting

No.TS-ST100WB

Product code: TS-ST100WB Install hole: 50MM OR 60MM Arm Base adjustable: 15° adjustable OR NOT IP Rate: IP66 Waterproof IK Rate: IK08 Power (wattage): 100W Input voltage: 220-240VAC / 85-265VAC 50/60HZ Surge protection: 6KV SPD Driver Driver Brand: Isolated driver included(Meanwell/DONE/Philips options) Power Factor: >0.9 THD: 15% Dimmable: 0-10V / Dali Dimming LED source: Philips/Osram/Bridgelux SMD3030 Check below for more about high lumens 0-10V dimmable 100W LED roadway lighting

Get A Quote

Add to Quote List Durchsuchen Sie die Liste

Aktie:

Beschreibung
Package

high lumens 0-10V dimmable 100W LED roadway lighting

Technical Datas:

Product code: TS-ST100WB
Install hole: 50MM OR 60MM
Arm Base adjustable: 15° adjustable OR NOT
IP Rate: IP66 Waterproof
IK Rate: IK08
Power (wattage): 100W
Input voltage: 220-240VAC / 85-265VAC 50/60HZ
Surge protection: 6KV SPD Driver
Driver Brand: Isolated driver included(Meanwell/DONE/Philips options)
Power Factor: >0.9
THD: 15%
Dimmable: 0-10V / Dali Dimming
LED source: Philips/Osram/Bridgelux SMD3030
SCMD: <5
LED CRI: >80Ra
Color Temp.: 30/40/50/55/60K
LED Lumens: 12000lm+/-3%
Efficiency: 120lm/W
Beam angle: 80*150°
Body Color: Sandy Grey
Materials: Aluminium body + PC Lens
Size (dimension): L573xW190xH70MM
Operating Temp.: - 30~75℃
Life Span: L70 B10 50.000h Tª=25°C
Cetificates: CE-EMC, CE-LVD, RoHS, FCC, C-tick
Tips: Photocell/Time control/ Triac/0-10V/DALI Dimming if needed

Other related items

Model No.	TS-ST50WB	TS-ST100WB	TS-ST150WB	TS-ST200WB
Wattage	50W	100W	150W	200W
Install hole	Φ50/60mm	Φ50/60mm	Φ50/60mm	Φ50/60mm
Input Voltage	85-265V AC 50/60 Hz
Power Factor	PF > 0.95
LED Source	SMD3030 Philips / Osram / Bridgelux chips
CCT	Warm White (2700-3500K), Neutral White(4000-4500K), Cold White(5000-6500K)
Lumens	6000lm	12000lm	18000lm	24000lm
CRI	CRI > 90 (Ra)
Beam Angle	80*150°
LED Driver	6KV SPD isolated glued driver ( Meanwell/DONE/Philips )
IP Rate	IP66 waterproof
Material	Aluminium Body + PMMA Lens
Size	L493xW127xH70mm	L575xW190xH80mm	L665xW210xH80mm	L715xW230xH80mm
Body Color	Sandy Grey
Operating Temp.	-30℃ ~ 75℃

high lumens 0-10V dimmable 100W LED roadway lighting

High lumens 0-10V dimmable 100W LED roadway lighting is an energy-efficient and versatile lighting solution for streets, highways, parking lots, and other outdoor areas. These LED lights offer several benefits and features:

1. High Lumens: High lumen output ensures bright and uniform illumination, improving visibility and safety in outdoor spaces. A 100W LED roadway light can produce lumens in the range of 10,000 to 15,000, depending on the efficiency of the LED chips used.

2. 0-10V Dimming: The 0-10V dimming feature allows for precise control over the light intensity, enabling energy savings and customization of lighting levels based on the specific requirements of the area. It works by sending a low-voltage control signal (0-10 volts) to the LED driver, which adjusts the light output accordingly.

3. Energy Efficiency: LED lights consume significantly less energy than traditional lighting sources, such as high-pressure sodium or metal halide lamps, resulting in lower energy costs and reduced greenhouse gas emissions.

4. Long Lifespan: With a lifespan of 50,000 hours or more, LED roadway lights require less frequent maintenance and replacement, reducing overall maintenance costs and minimizing disruptions in traffic flow.

5. Environmentally Friendly: LED lights do not contain harmful substances like mercury and emit less heat compared to traditional lighting sources, making them a more environmentally-friendly choice.

6. Instant On/Off: LED lights turn on instantly without any warm-up time, ensuring immediate illumination when required.

7. Durability: LED roadway lights are built with robust materials and can withstand harsh weather conditions, making them a reliable choice for outdoor lighting applications.

8. Uniform Illumination: High-quality LED roadway lighting provides uniform light distribution, reducing dark spots and glare for improved visibility and safety.

When selecting high lumens 0-10V dimmable 100W LED roadway lighting, consider factors such as the desired mounting height, pole spacing, and light distribution pattern to ensure optimal performance and coverage. Additionally, choose products from reputable manufacturers that offer warranties and technical support to ensure the long-term reliability of your LED lighting investment.
