TS-TR1020WO7
 |
 |
| Code | TS-CE24WA400 | TS-CE42WA600 | TS-CE84WA800 |
|---|---|---|---|
| Rated Power | 24W | 42W | 84W |
| Diameter | D 400MM | D 600MM | D 800MM |
| Driver Brand | Eaglerise | Eaglerise | Eaglerise |
| Efficiency | 90-100lm/W | 90-100lm/W | 90-100lm/W |
| Lumens | 2160lm +/-5% | 3780lm +/-5% | 7560lm +/-5% |
| Beam Angle | 180° | 180° | 180° |

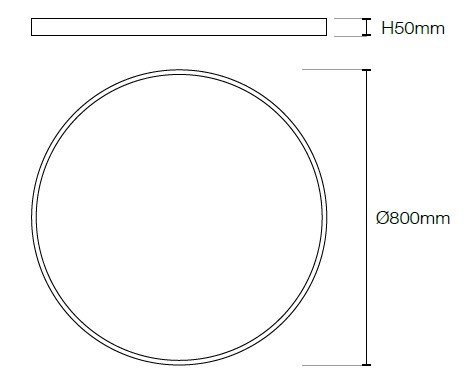

| Size | D400xH60MM | D600xH60MM | D800xH60MM |
| Code | TS-CE24WA400CCT | TS-CE42WA600CCT | TS-CE84WA800CCT |
|---|---|---|---|
| Rated Power | 24W | 42W | 84W |
| Diameter | D 400MM | D 600MM | D 800MM |
| Driver Brand | Eaglerise | Eaglerise | Eaglerise |
| Efficiency | 90-100lm/W | 90-100lm/W | 90-100lm/W |
| CCT Changeable | CCT 3000-4000-5000K | CCT 3000-4000-5000K | CCT 3000-4000-5000K |
| Lumens | 2160lm +/-5% | 3780lm +/-5% | 7560lm +/-5% |
| Beam Angle | 180° | 180° | 180° |
| Tuya Smart | Available | Available | Available |
| Size | D400xH60MM | D600xH60MM | D800xH60MM |
| Products Name | |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Shape | Round |

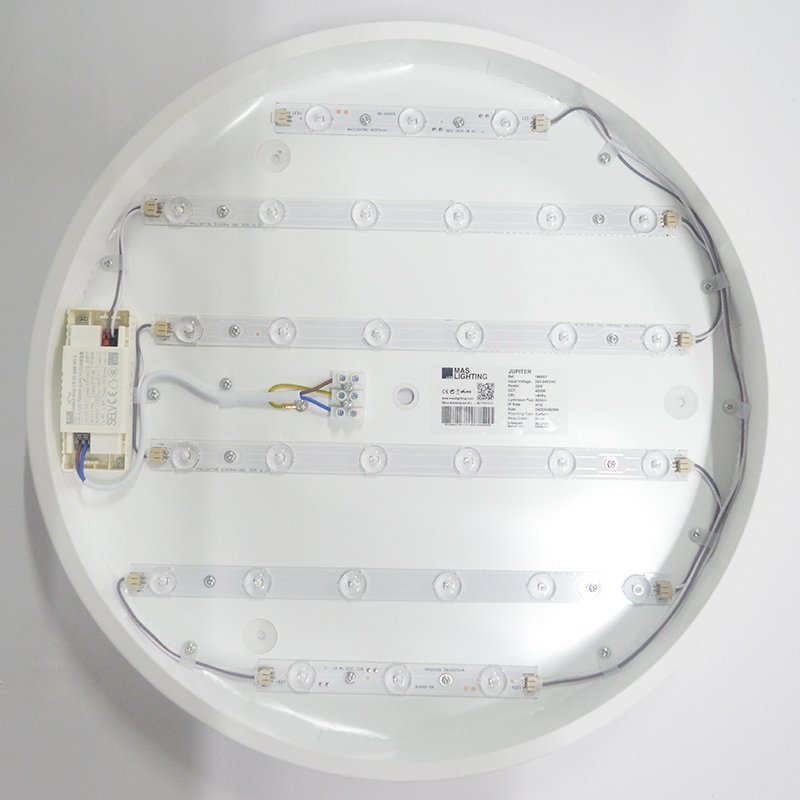

| Materials | Iron shell + PCB + UGR diffuser cover |
| IP Rate | IP20 |
| Anti-glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Surface / Suspended Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Eaglerise/ Lifud/Philips Driver |
| Dimmable | Non-DIM / 0-10V / Dali /Pushing Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100-110lm/W |
| Chip Brand | Bridgelux, Epistar, Lumileds Or Other |
| Color Render Index | Ra>80 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
